제품 상세 정보:
|
| 밀도: | 1.8-2.0 g/cm3 | 수분 흡수: | 22mg 이하 |
|---|---|---|---|
| 인장 강도 (MD): | ≥ 300MPa | 비유전율(50Hz): | ≤ 5.5 |
| 유전 손실(50Hz): | ≤ 0.04 | 애플리케이션: | 전기, 전자, 기계분야에 사용 |
| 적층에 수직인 전기강도(기름 중 90℃±2℃), 두께 1mm: | ≥ 14.2kV/mm | 적층과 평행한 항복 전압(오일 내 90℃±2℃): | ≥ 35KV |
| 절연 저항 (물에 24시간 담근 후): | ≥ 5.0 × 10^4MΩ | 적층에 수직인 굽힘 강도(일반): | ≥ 380MPa |

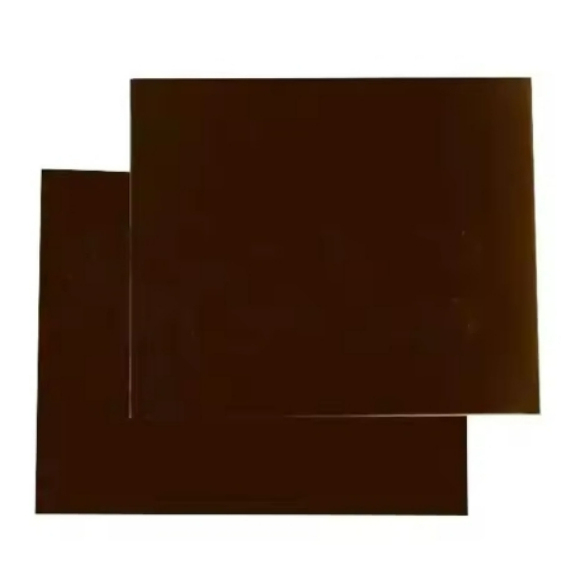

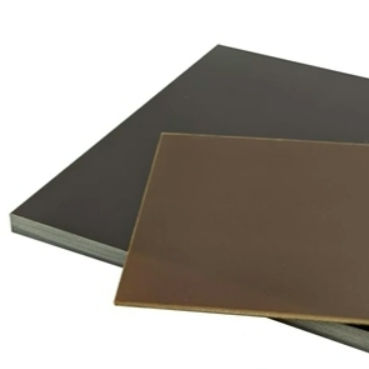

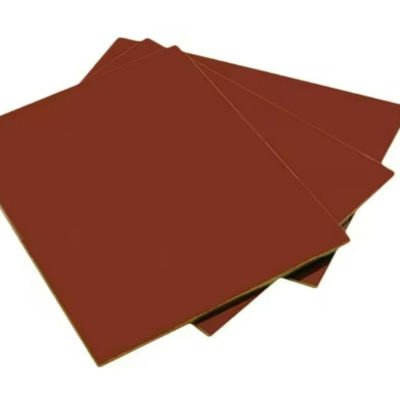

The Epoxy Glass Laminated Sheet is a high-performance industrial laminated sheet. It is manufactured by hot-pressing chemically treated non-alkali glass fiber cloth impregnated with high-Tg epoxy resin, making it a Class H heat-resistant insulating material. This product features high mechanical strength at elevated temperatures and stable electrical properties under high humidity conditions, and is widely used in electrical, electronic, and mechanical fields that demand high reliability.
| Attribute | Value |
| Density | 1.80~2.00 g/cm3 |
| Water absorption (3mm in thickness) | ≤ 22mg |
| Flexural strength perpendicular to laminations (normal) | ≥ 380MPa |
| Tolerances on thiness | 1±0.18mm / 2±0.28mm |
| Tensile strength | ≥ 300MPa |
| Dielectric dissipation (50Hz) | ≤ 0.04 |
| Relative Permittivity (50Hz) | ≤ 5.5 |
| Electric strength perpendicular to laminations (at 90℃±2℃ in oil), 1mm in thickness | ≥ 14.2 kV/mm |
| Insulation resistance (after 24 immersion in water) | ≥ 5.0 × 10^4 MΩ |
| Breakdown voltage parallel to laminations (at 90℃±2℃ in oil) | ≥ 35kV |
