Grade B Alkali-free Reinforced Laminates With Phenolic Epoxy Resin For Insulation

상품

전기 단열판

저희와 연락

info@un-tex.com

0086-13052726305

지금 연락하세요

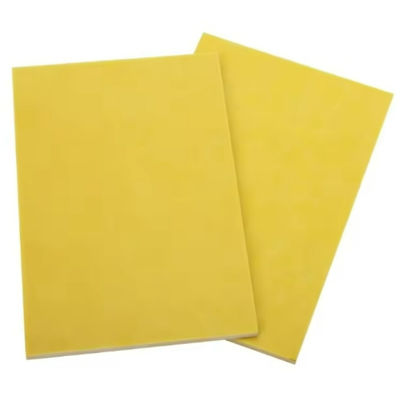

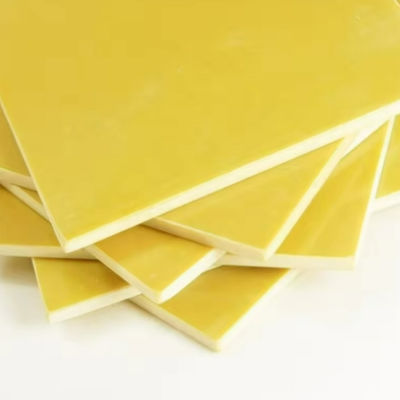

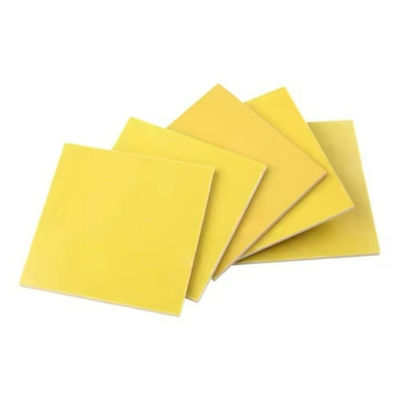

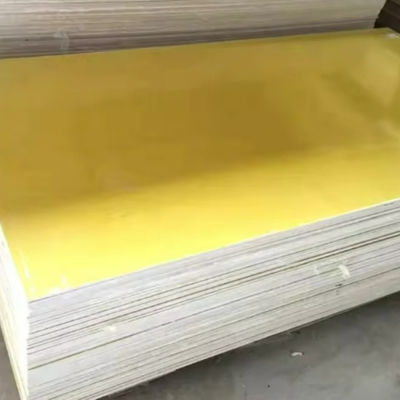

Grade B Alkali-free Reinforced Laminates With Phenolic Epoxy Resin For Insulation

MOQ:	1000kg
가격:	basing on size and quantity
표준 포장:	짚자리
배송 기간:	근무일 기준 30일
결제 방법:	티/티
공급능력:	한 달에 20000kg

상세 정보

제품 설명

상세 정보

원래 장소

모델 번호

페놀 에폭시 수지 및 유리 섬유

102X202cm / 102X122cm / 122X204cm / 122X244cm

0.2-101.6mm

1.8-2.0 g/cm3

임시 지수:

120 ℃

수분 흡수율:

≤0.5%

인장 강도 (MD):

≥200MPa

절연저항(보통):

≥5.0×10^12Ω

애플리케이션:

기계, 전기, 전자 및 기타 분야에 적용 가능

강조하다:

alkali-free reinforced laminates

phenolic epoxy resin insulation board

grade B electrical insulation laminates

제품 설명

Product Description:

3240: A High-Performance Electrical Insulation Laminate

The Phenolic Epoxy Glass Fiber Laminate 3240 provides outstanding electrical and mechanical performance. This alkali-free reinforced laminate, with its Class B thermal stability, is the ideal choice for manufacturing critical insulation components and structural parts. It performs consistently even in challenging operating environments, including high humidity and immersion in transformer oil.

Advantages:

Excellent Dielectric Strength & Stability: Combines high perpendicular electric strength (≥14.2 kV/mm at 90°C in oil) with low relative permittivity (≤5.5 at 50Hz), ensuring reliable insulation against breakdown and minimal energy loss for enhanced operational efficiency.
Superior Mechanical Durability: Features a high-density (≥1.8 g/cm³), robust structure that provides exceptional long-term mechanical strength, making it ideal for demanding applications.
Impeccable Surface Quality: The smooth, defect-free surface facilitates easy installation and prevents performance issues such as partial discharges, guaranteeing consistent quality and long-term reliability.

Technical Parameters:

Attribute	Value
Color	Yellow
Shape	Board
Surface	Smooth/no Significant Defect
Density	≥1.8g/cm3
Water Absorption	≤0.5%
Tensile strength (MD)	≥200MPa
Compressive strength	≥350MPa
Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness	≥14.2kV/mm
Parallel breakdown voltage(at 90℃±2℃ in oil)	≥35kV
Relative permittivity(50Hz)	≤5.5
Insulation Resistance (Normal)	≥5.0×10^12 Ω
Temp. Index	120℃
Flammability	HB

Applications:

Ideal for Transformers: Relies on its exceptional dielectric strength (both parallel and perpendicular) for internal insulation.
Critical for Switchgear: Valued for its mechanical durability and impact resistance in high-strength environments.
Essential for Busbar Supports: Ensures stable power distribution thanks to its low and stable permittivity.

Grade B Alkali-free Reinforced Laminates With Phenolic Epoxy Resin For Insulation 0

태그:

상품

MOQ:	1000kg
가격:	basing on size and quantity
표준 포장:	짚자리
배송 기간:	근무일 기준 30일
결제 방법:	티/티
공급능력:	한 달에 20000kg

상세 정보

제품 설명

상세 정보

원래 장소

중국

모델 번호

3240

재료:

페놀 에폭시 수지 및 유리 섬유

크기:

102X202cm / 102X122cm / 122X204cm / 122X244cm

두께:

0.2-101.6mm

밀도:

1.8-2.0 g/cm3

임시 지수:

120 ℃

가연성:

수분 흡수율:

≤0.5%

인장 강도 (MD):

≥200MPa

절연저항(보통):

≥5.0×10^12Ω

애플리케이션:

기계, 전기, 전자 및 기타 분야에 적용 가능

최소 주문 수량:

1000kg

가격:

basing on size and quantity

포장 세부 사항:

짚자리

배달 시간:

근무일 기준 30일

지불 조건:

티/티

공급 능력:

한 달에 20000kg

강조하다

alkali-free reinforced laminates

phenolic epoxy resin insulation board

grade B electrical insulation laminates

제품 설명

Product Description:

3240: A High-Performance Electrical Insulation Laminate

Advantages:

Excellent Dielectric Strength & Stability: Combines high perpendicular electric strength (≥14.2 kV/mm at 90°C in oil) with low relative permittivity (≤5.5 at 50Hz), ensuring reliable insulation against breakdown and minimal energy loss for enhanced operational efficiency.
Superior Mechanical Durability: Features a high-density (≥1.8 g/cm³), robust structure that provides exceptional long-term mechanical strength, making it ideal for demanding applications.
Impeccable Surface Quality: The smooth, defect-free surface facilitates easy installation and prevents performance issues such as partial discharges, guaranteeing consistent quality and long-term reliability.

Technical Parameters:

Attribute	Value
Color	Yellow
Shape	Board
Surface	Smooth/no Significant Defect
Density	≥1.8g/cm3
Water Absorption	≤0.5%
Tensile strength (MD)	≥200MPa
Compressive strength	≥350MPa
Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness	≥14.2kV/mm
Parallel breakdown voltage(at 90℃±2℃ in oil)	≥35kV
Relative permittivity(50Hz)	≤5.5
Insulation Resistance (Normal)	≥5.0×10^12 Ω
Temp. Index	120℃
Flammability	HB

Applications:

Ideal for Transformers: Relies on its exceptional dielectric strength (both parallel and perpendicular) for internal insulation.
Critical for Switchgear: Valued for its mechanical durability and impact resistance in high-strength environments.
Essential for Busbar Supports: Ensures stable power distribution thanks to its low and stable permittivity.
