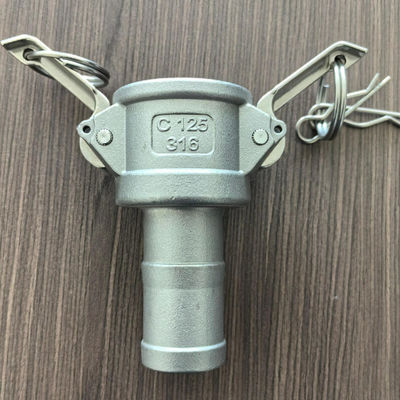

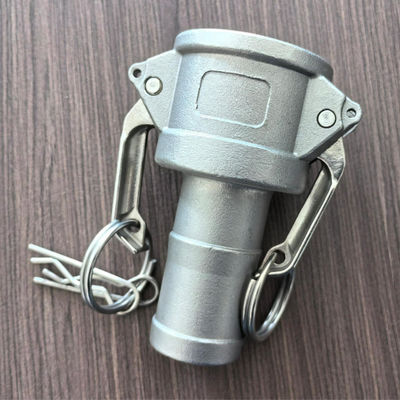

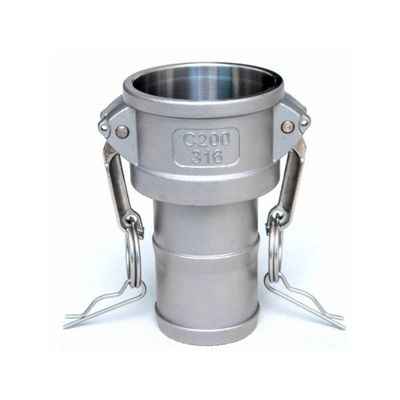

Type C Stainless Steel Camlock Coupling Precision Investment Casting

Type C Stainless Steel Camlock Coupling Precision Investment Casting
Type C Stainless Steel Camlock Coupling Precision Investment Casting Type C Stainless Steel Camlock Coupling Precision Investment Casting Type C Stainless Steel Camlock Coupling Precision Investment Casting Type C Stainless Steel Camlock Coupling Precision Investment Casting

큰 이미지 :  Type C Stainless Steel Camlock Coupling Precision Investment Casting

제품 상세 정보:
원래 장소: 중국
모델 번호: 유형 C.
결제 및 배송 조건:
최소 주문 수량: 100sets
가격: by quote
포장 세부 사항: 수출 카턴 케이스와 팔레트
배달 시간: 35 일
지불 조건: l/c, t/t
공급 능력: 200mt

Type C Stainless Steel Camlock Coupling Precision Investment Casting

설명
크기: 1/2 내지 8 유형: 기음
실: BSP/NPT/DIN2999 재료: 스테인레스 스틸 AISI 304 & 316/PP/NYLON/알루미늄/황동
가스켓 재료: NBR/EPDM/FSK/SILICONE 장비: CNC 머시닝센터, CNC 선반, Etc.
표면 마감: 우아한 작동 압력: 100~250PSI
기준: MIL AA-59326 / EN14420-7 애플리케이션: 석유, 화학, 조선, 물, 가스 산업

Description


The Stainless Steel Camlock Coupling, crafted through precision investment casting, ensures precise and stable connections with its one-piece molded structure. Made from high-quality 316/304 stainless steel, it combines excellent chemical resistance and high-temperature performance, adapting to diverse industrial environments. The precision structure enables rapid installation and removal within seconds while meeting international safety standards, making it a reliable choice for fluid transmission applications.


Type C (Female Coupler X Hose Shank)


The Type C Stainless Steel Camlock Coupling is the primary endpoint for a hose. It features a female coupler on one end to accept a male Camlock adapter, and a smooth hose shank on the other. This design is specifically engineered for a permanent, high-integrity connection to a hose, serving as the fundamental link between the flexible hose line and the quick-disconnect system.



Features

  • Standard Handle: Crafted from durable AISI 304 stainless steel.
  • Versatile Application: Engineered for safe transfer of liquids, solids, and gases (not compatible with steam or liquefied gas).
  • Custom Option: A multi-serrated hose shank and collar can be provided for a superior, non-slip connection upon customer request.


 Working pressure:

Size (inch) 1/2" 3/4"- 2" 2-1/2" 3" 4"- 6"
Working pressure (PSI)

150PSI

250PSI 225PSI 200PSI 100PSI



Advantages

  • Direct Hose Attachment: The hose shank is designed for a secure, permanent attachment to a hose, typically secured with two constant-tension clamps to prevent pull-off and leaks.

  • Optimized Flow: The smooth bore and streamlined internal design minimize flow restriction and pressure drop, ensuring efficient fluid transfer.

  • Robust Connection: The hose shank provides an excellent gripping surface, ensuring the hose is held firmly in place even under high pressure or when the hose is pulled.

  • Durability: Manufactured from high-quality materials like stainless steel, it resists corrosion, abrasion, and mechanical stress for long service life.


Applications

  • Hose Assembly Manufacturing: The standard and most common fitting used to terminate a hose, creating a complete, ready-to-use hose assembly with a quick-disconnect end.

  • Fluid Transfer and Loading Arms: Used on hoses for transferring fuels, chemicals, water, and other liquids where a secure, leak-free connection is critical.

  • Industrial Cleaning and Washdown: Attached to washdown hoses in facilities that require frequent tool changes or connection to fixed outlet



Different types


Type C Stainless Steel Camlock Coupling Precision Investment Casting 0


We offer eight types of Stainless Steel Camlock couplings.

To learn more, please click the link beneath the picture.


               Type C Stainless Steel Camlock Coupling Precision Investment Casting 1


        Type C Stainless Steel Camlock Coupling Precision Investment Casting 2


     Type C Stainless Steel Camlock Coupling Precision Investment Casting 3


    Type C Stainless Steel Camlock Coupling Precision Investment Casting 4


          Type C Stainless Steel Camlock Coupling Precision Investment Casting 5


       Type C Stainless Steel Camlock Coupling Precision Investment Casting 6


            Type C Stainless Steel Camlock Coupling Precision Investment Casting 7


          Type C Stainless Steel Camlock Coupling Precision Investment Casting 8




Our Advantages

  • Assured Quality
    Rigorously tested products that meet international standards for reliable performance and long service life.
  • Competitive Pricing
    Optimized supply chains ensure you receive the best value without compromising on product quality.
  • On-Time Delivery
    Reliable global logistics and efficient planning to guarantee your orders arrive as scheduled.
  • Customization Services
    Flexible OEM/ODM options to tailor products to your specific requirements and market needs.
  • Expert Support
    Dedicated multi-lingual team providing professional technical and service support from start to finish.
