제품 상세 정보:
원래 장소: 중국
모델 번호: AG-R701
결제 및 배송 조건:
최소 주문 수량: 6000 평방미터
가격: basing quantity
포장 세부 사항: 짚자리
배달 시간: 약 30 근무일
지불 조건: t/t
공급 능력: 500000 평방 미터

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

설명
알 호일 두께: 7음 기본 중량: 118Gsm
유리 천 메쉬: 10x9 인장 강도 - MD: 225N/25mm
인장 강도 - XD: 150N/25mm 버스트 강도: 100N/c㎡
퍼미언스(WVTR): 5.75ng/Ns 치수 안정성: 0.5% 미만
방사율: 0.03 이용 가능한 롤폭: 1.0m, 1.2m, 1.25m, 1.3m
길이: 50m 화재 등급: O등급 - 합격
강조하다:

10×9 Mesh Glass Cloth Foil-Glass Cloth Facing

,

7 um Al foil thickness Aluminum Foil Fiberglass Cloth

,

118 gsm Basis Weight Foil-Glass Cloth Facing

Flame-retardant Foil-Glass Cloth Facing With 10×9 Mesh Glass Cloth

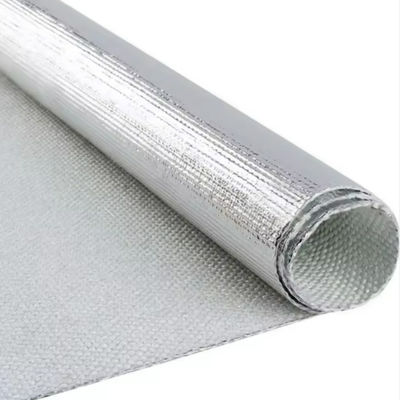

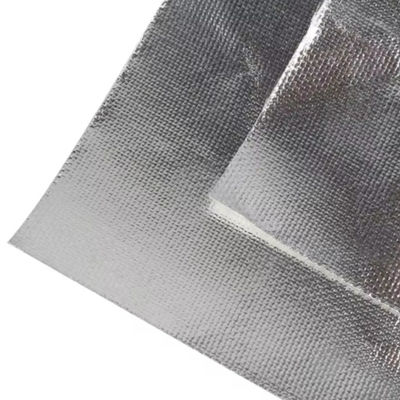

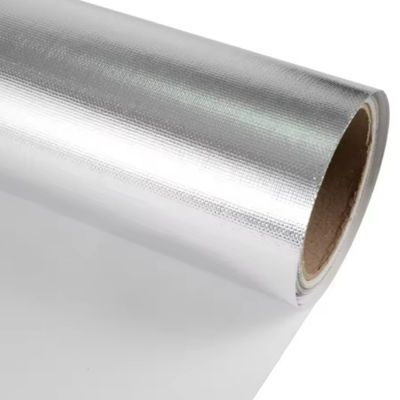

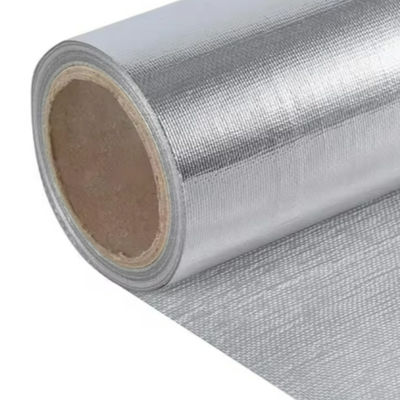

The Flame-retardant Foil-Glass Cloth Facing is a utility-grade composite facing material designed for insulation systems requiring high strength and flame retardancy. This product features a unique composite structure that laminates a thin aluminum foil to a high-strength fiberglass cloth using a flame-retardant adhesive. It not only possesses high tensile strength and exceptional tear resistance to withstand physical stress during installation and use but also acts as an effective vapor barrier, widely used as a protective outer layer for duct wrap, duct board, and pipe insulation.
Typical Physical Properties
Physical Properties Value
Alum.Foil 7 um
Basis Weight 118 gsm
Permeance(WVTR) 5.75 ng/N.s
Tensile Strength - MD 225 N/25mm
Tensile Strength - XD 150 N/25mm
Burst Strength 100 N/c㎡
Dimensional Stability less than 0.5%
Emissivity 0.03
Fire Rating Class O - Passed
Glass Cloth Mesh 10x9
Advantages
  • Exceptional Mechanical Strength
    The fiberglass cloth core provides high tensile and tear resistance, ensuring durability and reducing damage risk during installation and service.
  • Reliable Flame Retardancy
    The flame-retardant adhesive and composite design effectively inhibit flame spread, enhancing the insulation system's fire safety.
  • Excellent Vapor Barrier Properties
    The dense foil layer blocks moisture ingress, preventing condensation-induced performance loss and corrosion.
Applications
  • HVAC Systems: Primarily used as the outer facing for duct wrap and duct board, providing protection and acting as a vapor barrier.
  • Pipe Insulation: Used to wrap around various industrial and commercial pipe insulation materials (such as fiberglass or rock wool) serving as a protective and sealing layer.
  • Industrial & Building Insulation: Suitable for the final protective layer on insulation systems for building envelopes and industrial equipment where specific strength or flame retardancy requirements exist.
