High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation

High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation
High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation
High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation

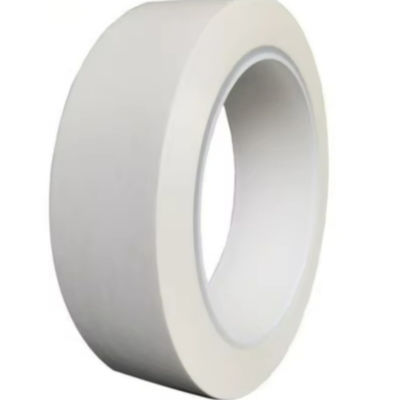

큰 이미지 :  High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Aramid paper adhesive tape
인증: UL
모델 번호: 432
결제 및 배송 조건:
최소 주문 수량: 500 sq.m
가격: basing on size and quantity
포장 세부 사항: 상자
배달 시간: 약 30 일
지불 조건: tt, t/t
공급 능력: 20000롤
접촉

High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation

설명
연장: 4% 너비: 10~980mm
길이: 50m 또는 주문에 따라 강철에 대한 접착력: 12N/25mm
색상: 하얀색 제품 이름: 고온 아라미드 종이 접착제 테이프
총 두께: 0.105mm 애플리케이션: F 클래스 모터 및 변압기 코일 엔드 포장
재료: 아라미드 종이
강조하다:

0.105mm Thickness Aramid Paper Adhesive Tape

,

12N/25mm Adhesive Strength Electrical Insulation Tape

,

155℃ Temperature Range Nomex Adhesive Tape

Aramid Paper Adhesive Tape With Acrylic Pressure Sensitive Adhesive White Electrical Insulation Tape
The Aramid Paper Adhesive Tape is a high-performance industrial tape featuring a unique substrate made from heat-resistant meta-aramid fibers, combined with a durable acrylic pressure-sensitive adhesive. This combination results in a lightweight, flexible tape that delivers exceptional electrical insulation, flame retardancy, and mechanical strength, suitable for use in extreme temperature and demanding industrial environments.
Technical Parameters
Parameter Value
Elongation 4%
Adhesive Flame Retardant Acrylic Pressure Sensitive Adhesive
Length 50m Or As Per Order
Width 10~980mm
Adhesive Strength to steel 12N/25mm
Tensile Strength ≥30N/10mm
Color White
Application F-class Motor And Transformer Coil End Wrapping
Material Aramid Paper (similar To Nomex Paper)
Temperature Range -55~155℃
Key Advantages
  • Exceptional Heat Resistance & Flame Retardancy: Offers exceptional thermal stability and flame retardancy, withstands temperatures up to 155℃ (311℉). Ideal for electrical insulation, motor winding, and transformer applications.
  • Excellent Electrical Insulation: Offers high dielectric strength, providing reliable insulation in high-voltage applications such as motors and transformers.
  • High Mechanical Strength & Durability: The aramid fibers impart high tensile and tear resistance, making the tape abrasion and puncture-resistant for reliable mechanical protection.
  • Good Flexibility: The tape is soft and pliable, allowing for easy wrapping, die-cutting, and conforming to complex shapes.
  • Resistance to Chemicals and Radiation: Exhibits good resistance to many chemicals, oils, and coolants, as well as some level of radiation, suiting it for harsh environments.
Applications
  • Electrical Motors & Insulation: Used for layer, slot, phase, and end-wedge insulation in electric motors, transformers, and generators.
  • Aerospace & Rail Transportation: Used for wire harnessing, insulation protection, and fireproofing in aircraft and high-speed trains.
  • Electronics Industry: Used for insulating and fixing flexible printed circuits (FPCs) and lithium-ion batteries, and as a mask during high-temperature soldering.
  • Industrial Protection & Composites: Serves as a protective wrap for high-temperature pipes and hoses. Can also be used as a release or separation layer in composite manufacturing.
The Aramid Paper Adhesive Tape, Model 432, delivers reliable performance and efficient insulation for your applications. Procurement is straightforward, with a standard delivery time of approximately 30 days and simple payment via Telegraphic Transfer (TT).
High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation 0 High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation 1
